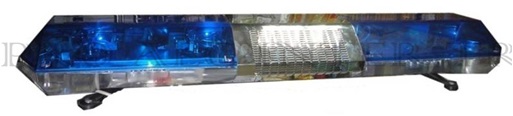

BANGKOK SIGNAL Light bar series is newly developed products which adopts international advanced technology, it appears cute and streamline shape. It has much character and advantage, for example : big power and high brightness of bulb, not easy to abrade and no noise and dead point for rotary structure of worm and worm wheel, wide sugnaling range and long distance range for double layer light, pure color and anti-fog, reliable and stable function for impulse xenon bulb, high transparency, anti-impact and not easy to fade for PC material of cover, excellent signaling effect for multi-color bright. It is widely applied for public security, fire-fight, ambulance, engineering vehicle and other special industry.
2.3 Washable Floor – covered with aluminium plate

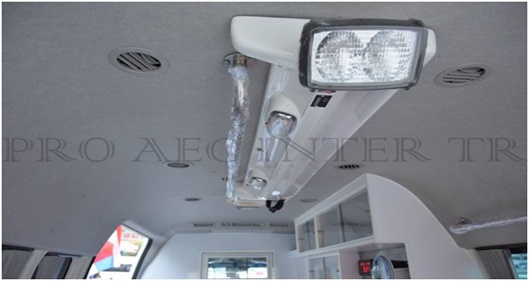

2.4 Room Lamp (ADD 10 W)

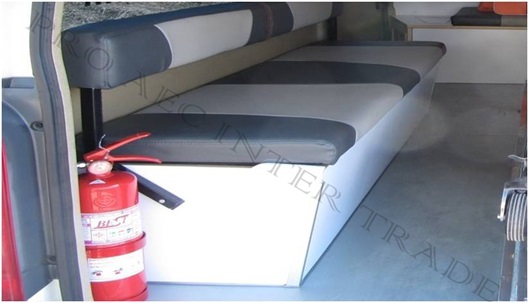

2.5 Fire extinguisher 1 kg

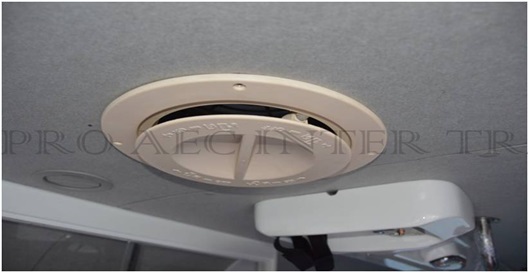

2.6 Roof ventilator with electric fan

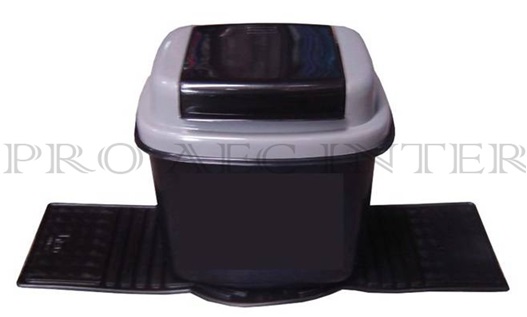

2.7 Waste Bin , Sharp Bins and water tank

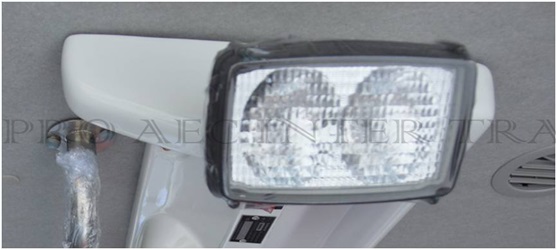

2.8 Halogen spot light for patient

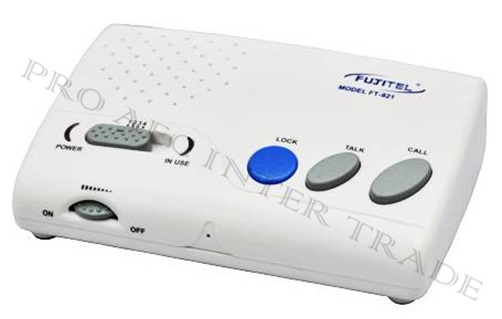

2.9 Intercom system
FUJITEL
Detail
Wireless intercom.
Can connect up to 4 stations.

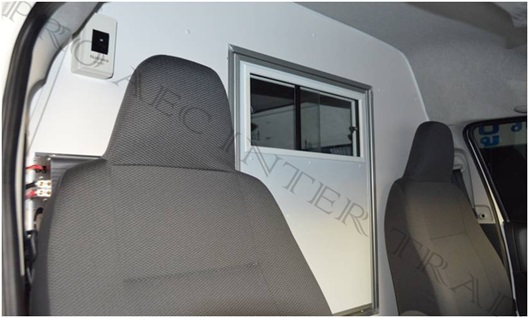

2.10 Partition with slide window

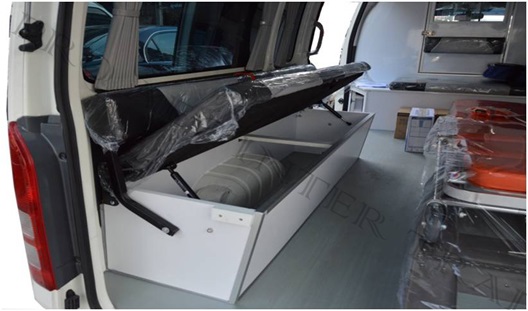

2.11 Attendant seat (3P) with storage box

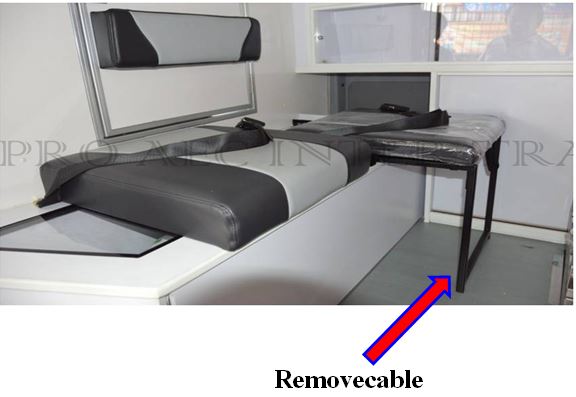

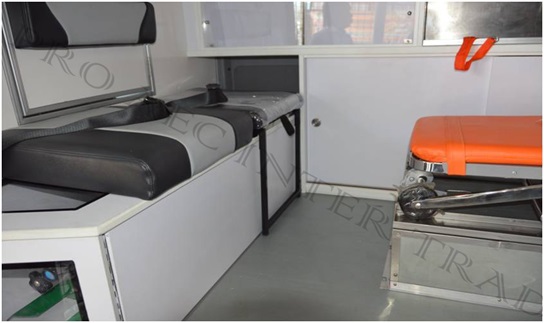

2.12 Care giver seat (2P)
With Seat belt

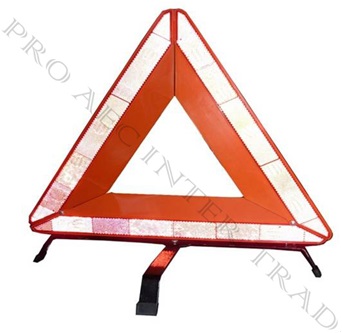

2.13 Triangular Warning Sign board on parking

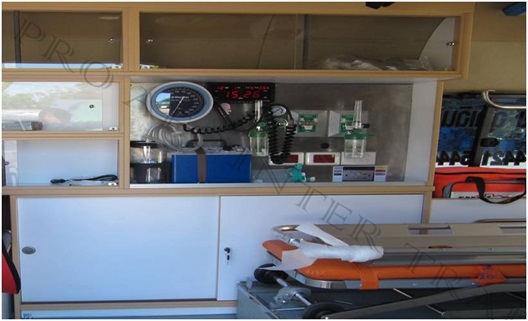

2.14 Medical Cabinet

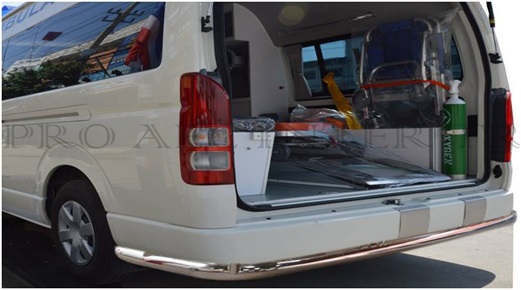

2.15 Stainless steel bumper guard for trolley

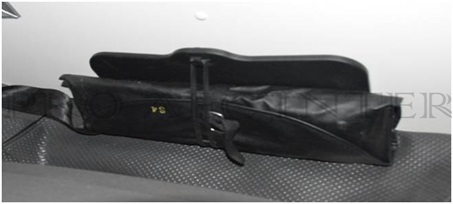

2.16 Vehicle mechanic tool box

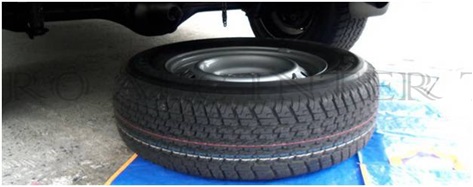

2.17 Spare tires and accessories of vehicles
3. Patient carrying equipment

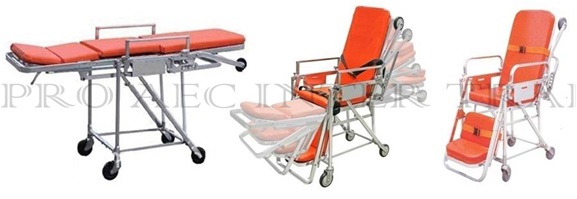

3.1 Patient stretcher trolley
BKLife
Main body of this stretcher is made of high strength
aluminum alloy & soft sponge mattress, and the
angle of backrest is adjustable which make patient
feel more comfortable.
The stretcher is controlled by right-side handles and
the legs of stretcher can be bent down.
And there are the return elastic lock device at both
side of the stretcher & the legs.
Light weight, small cubage, portable and easy to
disinfect and clean.
All the advantages make the stretcher to be used in
restricted space to transfer patient, such as elevator
in hospital, ambulance, aeroplane and urban roads.
Technical Parameters
Unfolded size : 196 x 55 x 86 cm
Folded size : 190 x 55 x 25 cm
Package size : 198 x 63 x 29 cm
N.W : 34 kg
G.W : 40 kg
Load Bearing : ≤ 159 kg
FDA Registered

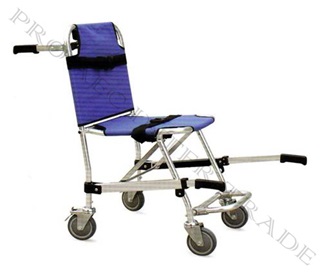

3.2 Sub Stretcher (Foldable)
BKLife Stair Stretcher
Made of aluminum alloy material, in flexible & light structure,
It can be folded easily for carrying patients who has fracture downstairs or upstairs.
3.3 Spine Board with head immobilizer : Adult 1 / Child 1 or combined board
BKLife
Features
Produced by rotation molding inner material
is high-strength bamboo stick.
It is solid and durable, light weight.
Can be penetrated by X-ray, MIR, CT.
More handholds along each edge, it is
convenicnt to transfer patient.
Compatible with head immobilizers and cervical
collars.
Different colors can be available.
Technical parameters
Material : LLDPE
Standard color : Red
Product size : 183 x 45 x 3.5 cm
Packing size : 187 x 47 x 5 cm
N.W : 6.7 kg
G.W : 7.8 kg
Load bearing : 159 kg
4. Patient Care Equipment

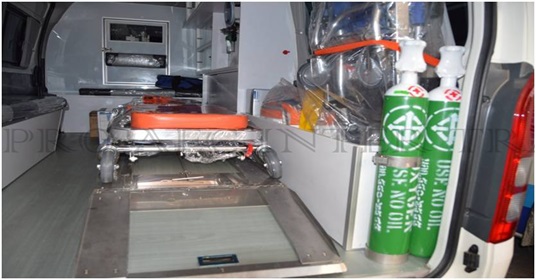

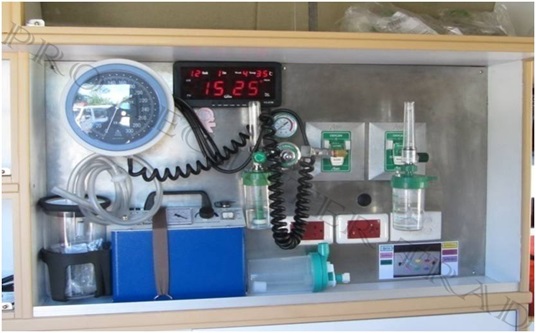

4.1 Oxygen cylinder (2 tanks) fixed to the vehicle

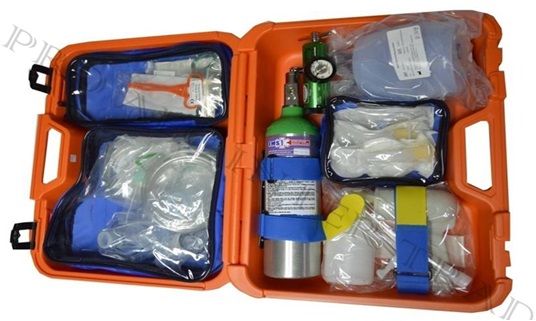

4.2 Oxygen resuscitator (Portable oxygen supply)
OXIVAC HERSILL
The Oxivac emergency equipment, PEDH cases, includes the essential elements for the patients revival :
Suction : new foot operated suction pump Vacup pro. Great vacuum power (-615 mmHg, -0.82 bar, -82kPa), 72 L/min flow and 650 ml capacity. Its features make VacUp one of the top emergency pumps in the market
Oxygen : O² cylinder with fixed flow regulator of 5L/min or click style flowmeter of 0-15 L/min (depending on models) The P-300 regulator is designed to work at 200 or 300 bar and is one of the smallest and lightest regulators manufactured in Europe

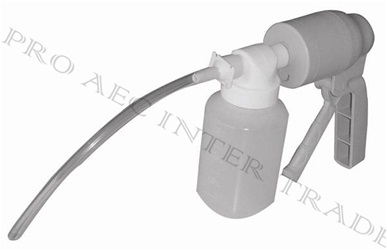

4.2.1 Manual suction unit 1
EMS
Probably the most complete hand-held
pump available
Compact and lightweight
Easy to squeeze
Fast and powerful
No regular maintenance required
No special storage conditions required
Overfill protection
Disposable of reuseable container

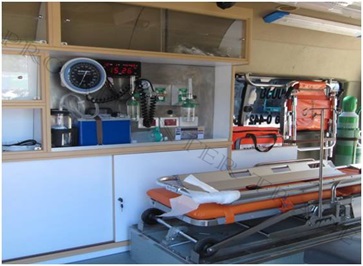

4.3 Sphygmomanometer – spring type or digital
RIESTER MADE IN GERMANY
Generously climensioned scale and high-contrast scale
layout for optimum readability: scale up to 300 mm Hg
Spacious basket on the reverse side for tubes and cuffs
Non-wearing air-release valve with fine adjustment
Micro-filter to protect the release valve and measurement
system
Specially hardened copper-beryllium membrane, which is
resistant to aging, can withstand pressures of up to
maximum 600 mm Hg
Precision mechanism mounted on a special support, in
order to ensure complete stability of the measuring
system and the zero-point
No zero-point fixation required
Maximum error tolerance : ± 3 mm Hg

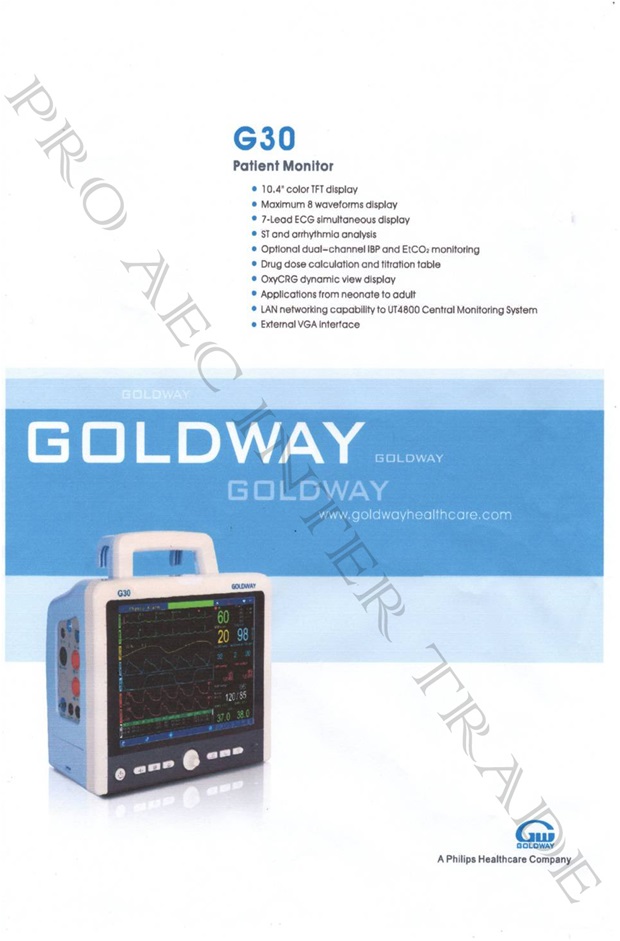

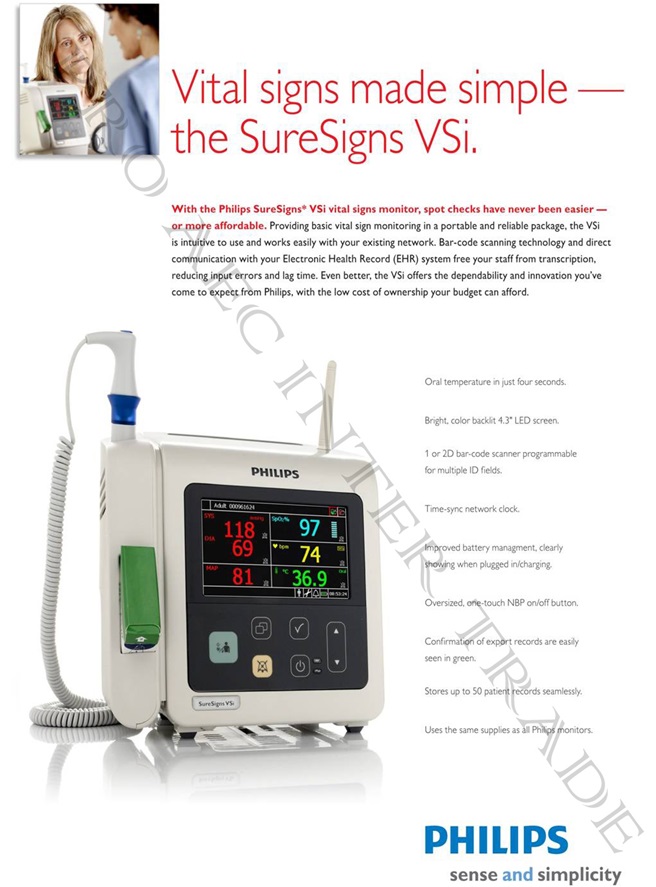

4.4 Patient Color Monitor (For Advanced Ambulance) (Not Included)
